Aerofoil Design

Aerofoil Design Unfolding

Mesh Unfolder 2.0 software can be used to process polymeshes or 3D face models as surfaces like this aerofoil into the flattened or unfolded shapes to give the best possible result by evening out the tensions as the deformation required to form the curving surface is removed. The aerofoil model is an example:

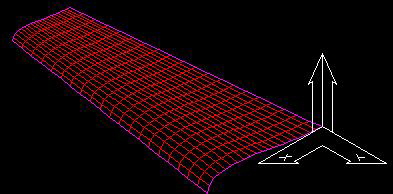

aircraft aerofoil
Fig: Aircraft Aerofoil

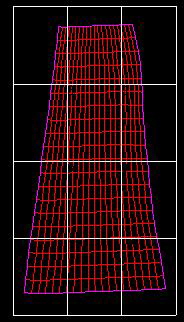

Aircraft aerofoil unfolded
Fig: Unfolded Aerofoil
